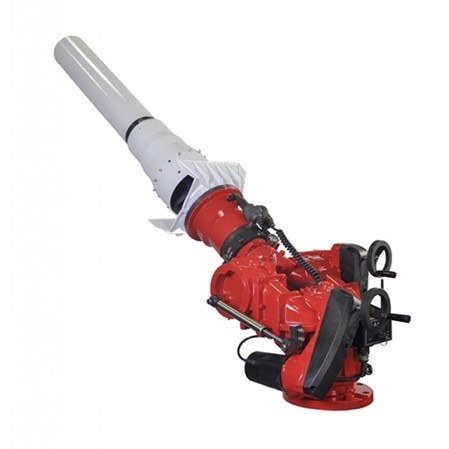

3000 AeroMaster12 Monitor

The AeroMaster12 electronic monitor is capable of delivering 12,000 lpm and over 3,000 gpm of water.

Categories: ,

Description

This monitor provides a smooth operation through its 355° of rotational range and 190° (+120°/-70°) of vertical travel. Additionally, a friction loss of less than 1.4 bar (25 psi) at 12,000 lpm (3,000 gpm) is achieved. The standard absolute position sensors provide advanced features like programmable obstacle avoidance, oscillation, and stow/deploy positions. The onboard, fully sealed IP 67 CAN based monitor control system features simple “plug and play” installation with built-in wireless capability and a USB port for quick software updates in the field.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.
Features
  • Compact low profile design
  • Lightweight Pyrolite construction
  • Pressure and velocity balanced for faster speeds and longer life cycle
  • CAN multiplexed controls provide simple “plug and play” installation
  • Integrated wireless compatibility, utilizing the optional 3600 handheld remote control
  • Waterproof (IP 67 rated) electronic control system with locking connectors
  • User-programmable obstacle avoidance, stow and deploy positions, soft stops, and auto oscillation
  • Superior range of motion
    • Rotation range of 355°
    • Elevation range 190° (+120° to -70°)
  • Proportional speed control • Manual override handwheel controls (only spin when engaged in manual operation)
  • Optional 12V or 24V operation
  • Optional Point-Aim Joystick
  • Optional patent-pending Style 730 Quick-Attack field detachable foam tube
  • Optional patent-pending flat dispersed blades on fog nozzle
