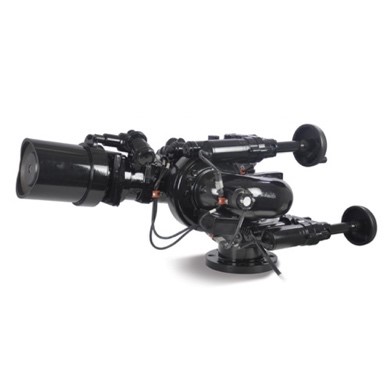

3356 Trident HFRT-10 High

The Trident HFRT-10 is Akron’s newest roof turret. Delivering up to 2000 GPM (7600 LPM), multiple control options, and a variety of nozzle options to meet individual needs.

Categories: ,

Description

Akron Roof Turrets offer greater reliability and superior performance when the second best is not an option. Akron Turrets come in a variety of rooftop designs and flows, either aspirated or non-aspirated, all with easy-to-use controls from inside the truck cab. Our Roof Turrets offer joystick control and adjustable automatic oscillation. TRIDENT HFRT-10

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.
Features
  • Manual handwheel controls
  • Flow: 350-2000 GPM (1325-7600 LPM)
  • Inlet pressure of 150 psi (10 bar) non-aspirated 190 psi (13 bar) aspirated
  • MAX inlet psi 250 psi (17 bar)
  • Horizontal rotation up to 355°
  • Vertical travel from +70° & -30°
  • Inlet: 4″ (100 mm) 150 lb flange (68 kg)
  • Outlet: 3.5″ NH (89mm)
  • Proportional speed control
  • One-touch stow and deploy
  • Obstacle avoidance
  • Adjustable automatic oscillation
  • Position feedback
  • 12V or 24V
  • Works with Electric MasterStream Nozzles (standard outlet)
  • Painted black finish
  • Durable lightweight Pyrolite construction
  • U2 Control System Upgrade Features:
    • Integrated dual gallonage foam tubes & fog nozzles
    • Cowling with lights
    • Wireless remote control
    • Works with dry chemical piggyback
    • Inside the cab manual overrides
    • Rear inlet (4″ flange, 4″- 5″ victaulic)
    • Custom paint (red, white, lime yellow)
