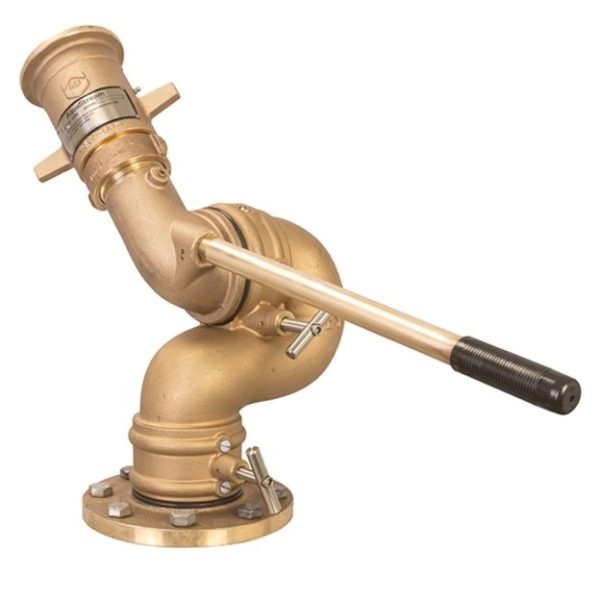

3528 Omega XP Monitor 4″ flange x 2.5″ NH outlet, monitor only

Industrial/marine monitor

Categories: ,

Description

The Omega XP brass monitor offers maximum travel for optimal coverage in a compact, economical package for industrial and marine environments.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.
Features
  • Brass construction for corrosion resistance
  • Cast-in turning vanes for more efficient flow
  • Unique locking mechanism to hold the desired position
  • Enhanced design provides less tip weight which translates to lower handle operating force
  • 360° of horizontal movement and 135° of vertical movement
  • Elevation 90° above to 45° below horizontal
  • Maximum operating pressure of 200 psi
  • Maximum flow of 1250 gpm
