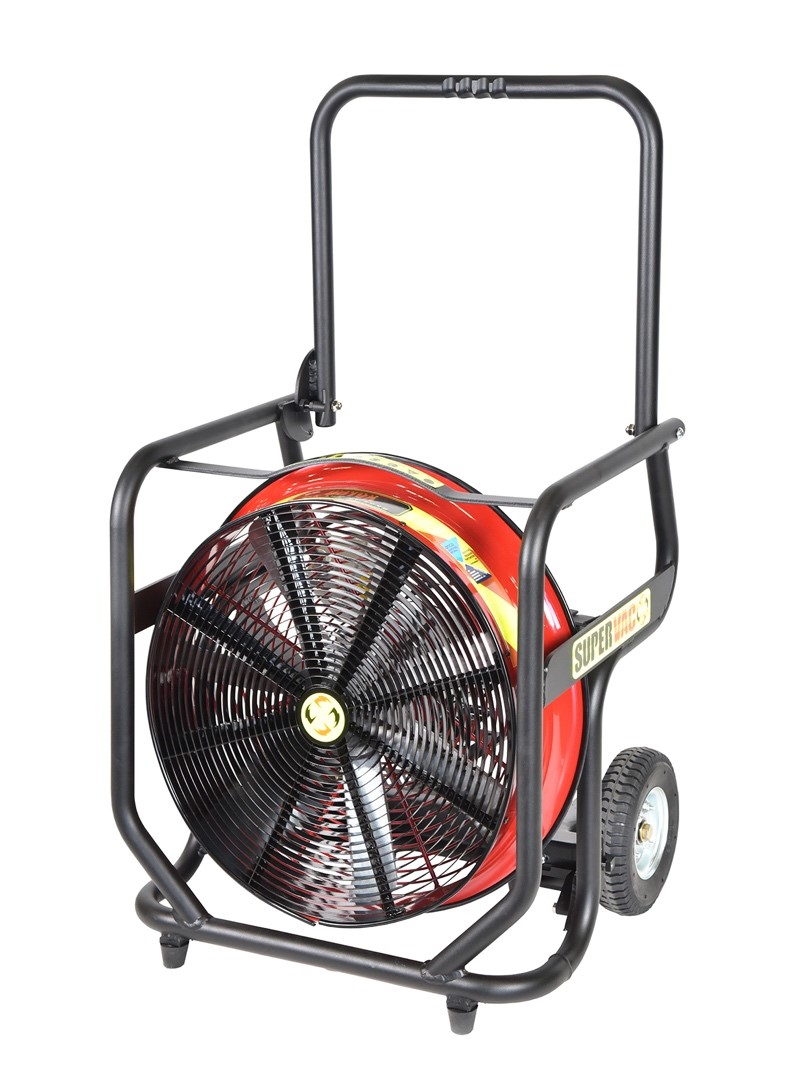

Electric PPV Fans

Add to Quote
Categories: ,

Description

SuperVac builds industrial electric ppv fans with the utmost priority on durability and toughness to stand up to the complex demands of the fire service. Electric PPV fans from SuperVac come in a variety of sizes and motors.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

18″ Valor Series
Model Weight Motor Output
V18-ES 80 lbs 1 Hp Single Speed 8140 cfm
V18-EX 90 lbs 1 Hp Hazardous Location 6,378 cfm
V18-EV 84 lbs 1.5 Hp Variable Speed 10,744 cfm



20″ Valor Series
Model Weight Motor Output
V20-ES 82 lbs 1 Hp Single Speed 10,190 cfm
V20-EX 92 lbs 1 Hp Hazardous Location 10,190 cfm
V20-EV 86 lbs 1.5 Hp Variable Speed 13,788 cfm



16″ 7-Series
Model Weight Motor Output
716-E2 68 lbs 1 Hp Single Speed 6740 cfm
716-EXP 78 lbs 1 Hp Hazardous Location 6740 cfm
716-EVS 72 lbs 1 .5 Hp Variable Speed 9950 cfm



18″ 7-Series
Model Weight Motor Output
718-E2 82 lbs 1 Hp Single Speed 8140 cfm
718-EXP 92 lbs 1 Hp Hazardous Location 8140 cfm
718-EVS 86 lbs 1.5 Hp Variable Speed 12,820 cfm
718-B 68 lbs IonPac 2.0 Battery or 115V AC 11,140 cfm



20″ 7-Series
Model Weight Motor Output
720-E2 88 lbs 1 Hp Single Speed 10,190 cfm
720-EXP 98 lbs 1 Hp Hazardous Location 10,190 cfm
720-EVS 92 lbs 1.5 Hp Variable Speed 15,110 cfm



24″ 7-Series
Model Weight Motor Output
724-E2 104 lbs 1 Hp Single Speed 13,320 cfm
724-EXP 114 lbs 1 Hp Hazardous Location 13,320 cfm
724-EVS 108 lbs 1.5 Hp Variable Speed 16,370 cfm
