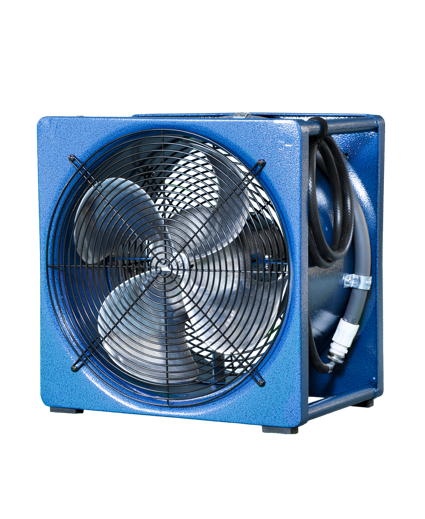

Fan Mister F164M

Categories: ,

Description

The F164M is a 16″, electric, single-speed, fan with a built in 3 built in misting ring on discharge side of the fan.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • (3) Built In Misting Rings – made of aluminum to prevent rust, connects to any garden hose or auxiliary line
  • Reduces Ambient Air Stream by 30° F
  • Can be Used as Electric Smoke Ejector – as powerful as the P164S
  • Patented 4-tip recurve Aluminum Blade – holds up better than plastic in high heat
  • Precision Balanced Blade – maximizes output
  • Rubber Feet – heavy duty rubber adds friction to keep fan in place
  • 4 Carry Handles – makes transportation easy with 1 or 2 people
  • Front and Rear Guards – prevents accidental contact with key components
  • 5 Year Warranty
  • Motor – Bluffton, single speed, TEAO, 1/3 Hp, 60/50hz, 115/230V
  • HxWxD – 19.75″ x 18.75″ x 13″ – 502mm x 477mm x 330mm
  • Blade Diameter – 16″ – 406mm
  • Weight – 41 lbs – 18.5 kg
  • RPM – 1725
  • Start – 2000W
  • Run – 700W
  • Water Requirements – 2 g/hr – 7.5 l/hr – garden hose or auxiliary line
  • Output (Shroud) – 3200 cfm – 5435 cmh
  • Output (Venturi) – 5200 cfm – 8835 cmh
