FORTEM – Intrinsically Safe Helmet-Mounted Dual-Light™ Flashlight

Designed for professionals who appreciate performance and convenience.

Categories: ,


The FORTEM™ intrinsically safe dual-light™ flashlight is the most versatile choice for helmet-mounted hands-free lighting. With 250 flashlight lumens that are powerful enough to cut through dense smoke combined with a serious independent 115-lumen floodlight mounted at a 45-degree downward angle, the 5466 is designed for professionals who appreciate performance and convenience.

User adjustable flashlight modes range from 250 lumens on high, 100 lumens on medium and 25 lumens on low. Dial down the floodlight to light up your gear or feet as you walk by adjusting from 115 lumens on high, to 50 lumens on medium or 10 lumens in potentially-life saving survival mode.

Additionally, in Dual-Light mode (both the Flashlight and the Floodlight turned on at the same time) you get 150 lumens providing maximum versatility along with user safety. The 5466 also has a green, rear-facing LED light so that others can easily identify team personnel in smoke-filled or dusty environments.

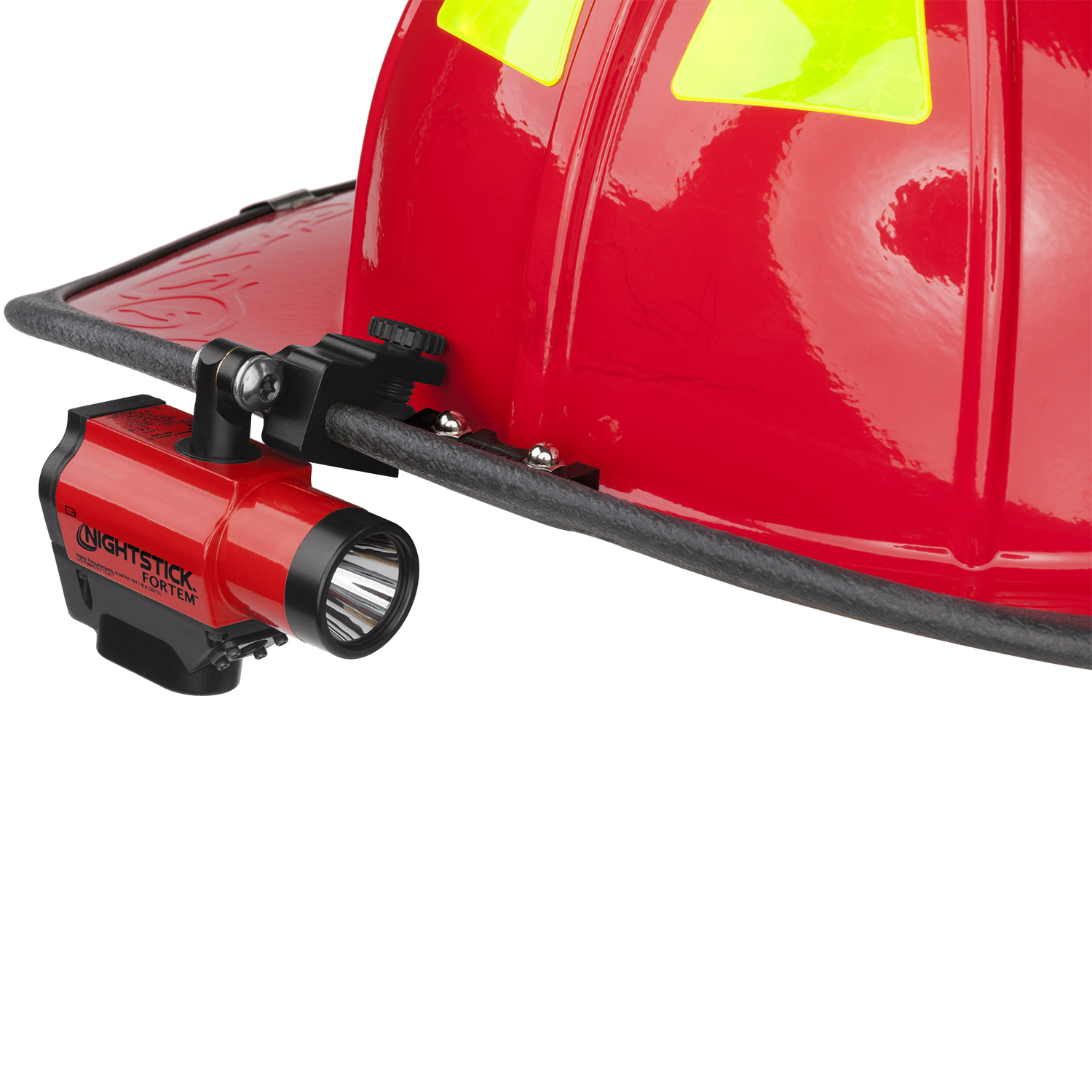

The 5466 will fit on any Fire Helmet (or side-brim hard hat) regardless of whether it has an up-turned or down-turned brim thanks to the 360-degree pivoting mount that allows the user position the light at the optimal angle. This feature makes it possible to not only avoid goggles, face shields, and other helmet-worn gear but also place the light exactly where it’s needed. The 5466 is IP-67 rated dustproof/waterproof and meets the requirement for NFPA-1971-8.6 (2013). Power comes from 2 included CR123 batteries. (Not compatible with rechargeable batteries).

Available P/Ns: XPP-5466R (red)

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

  • LED technology
  • Flashlight – Floodlight – Dual-Light™
  • User-selectable brightness on flashlight & floodlight including 10 Lumen survival mode on floodlight
  • 45 degree downward angled floodlight
  • Works with virtually all fire helmets and hard hats

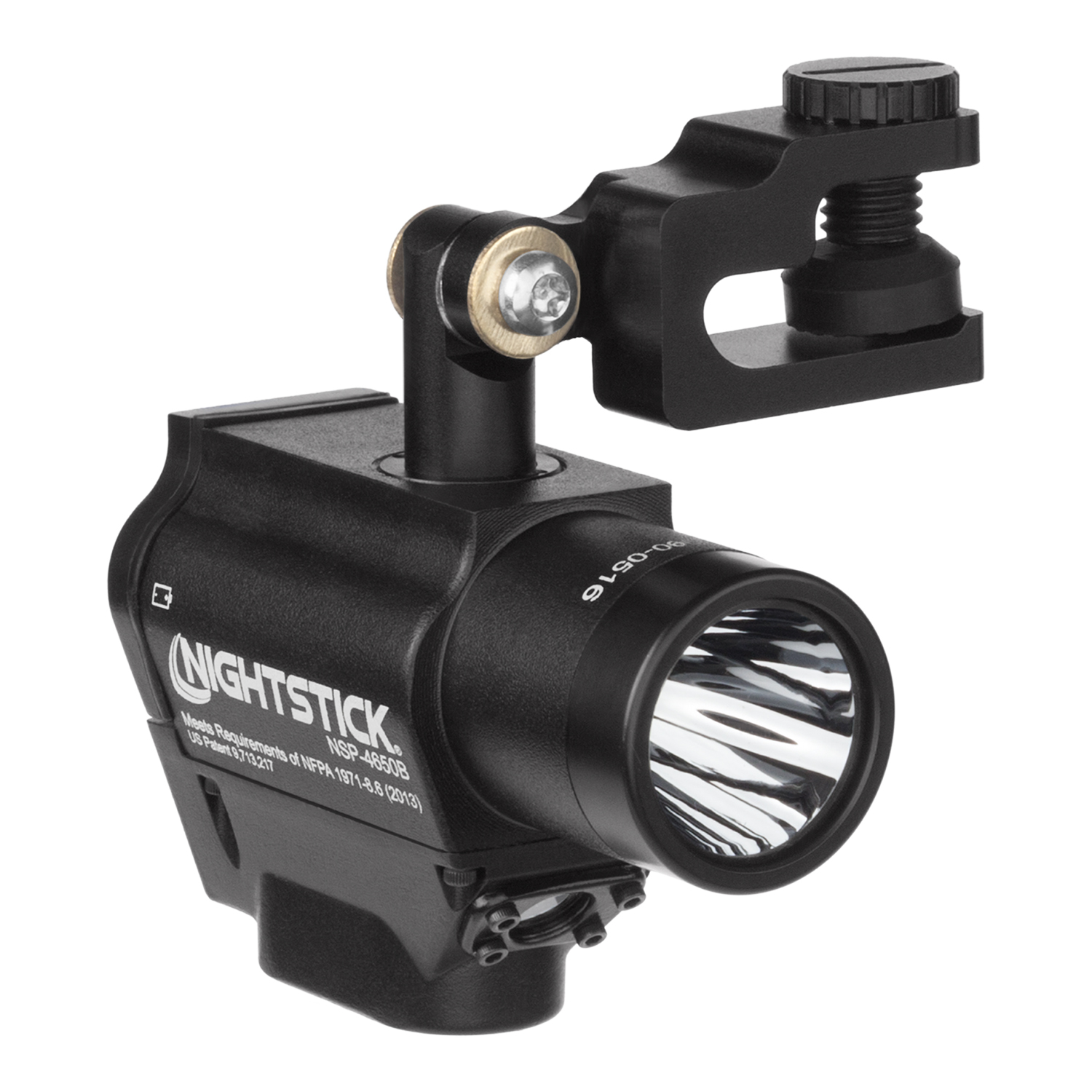

  • 360-degree pivoting clamp mount fits virtually all fire helmets and hard hats
  • Allows the user to select exact angle and position for optimum light alignment and clearance of face shields, goggles or other equipment

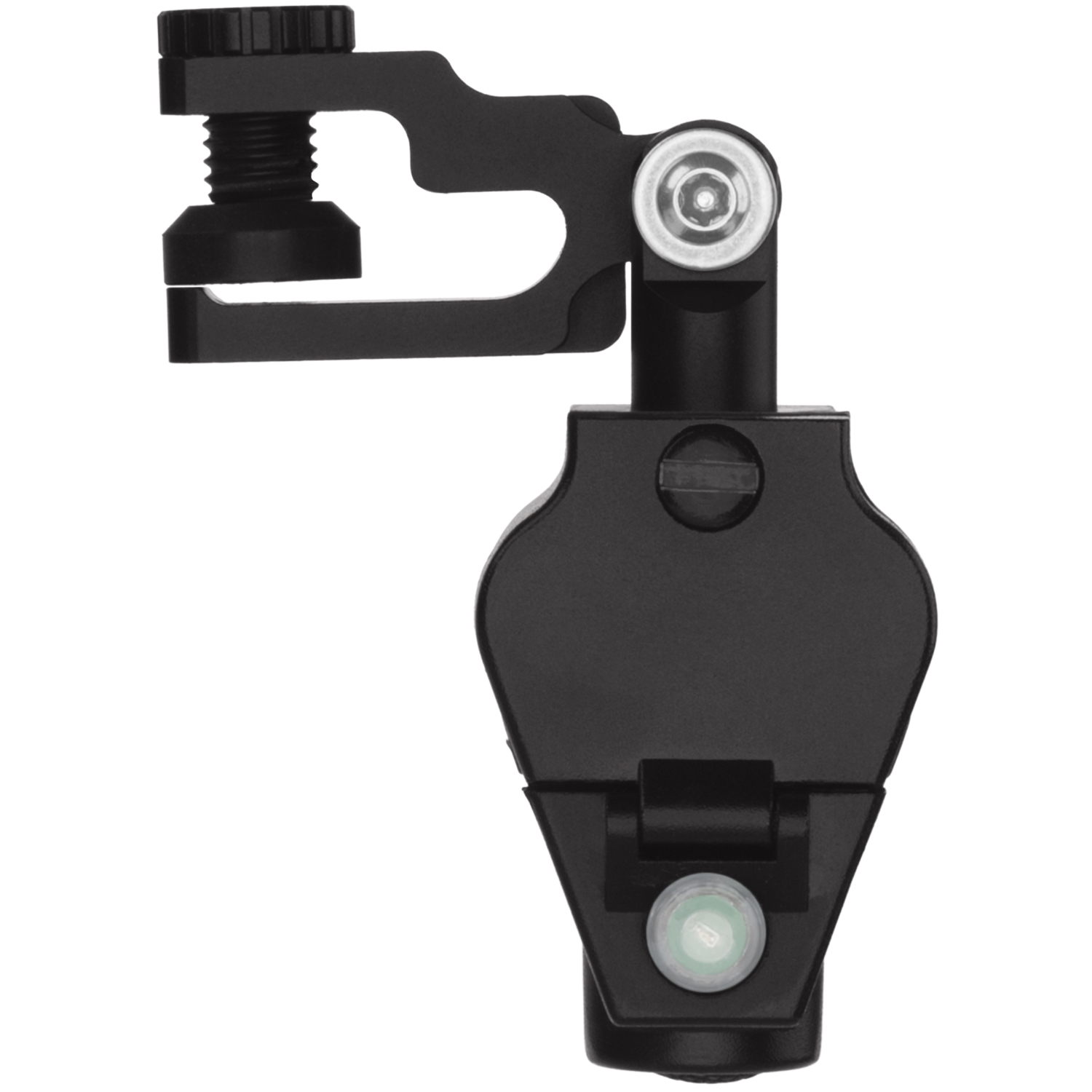

  • Rear-facing Green safety LED
  • IP-67 Dustproof / Waterproof
  • Impact and chemical resistant
  • Meets the requirements for NFPA-1971-8.6 (2013)
  • Serialized for personal identification
  • 2 CR123 batteries (included)
  • Limited Lifetime Warranty


Dual-Light: Yes

Multi-Function: Yes

Flashlight Lumens: 250 / 100 / 25

Floodlight Lumens: 115 / 50 / 10

Dual-Light Lumens: 150

Beam Distance: 203m / 126m / 64m

Candela: 10,335 / 3,975 / 1,021

Drop Rating: 2 m

Dust/Water Rating: ANSI IP-67 Dustproof / Waterproof

Flashlight Runtime: 3.5 / 6.5 / 16

Floodlight Runtime: 3.5 / 6.5 / 16

Dual-Light Runtime: 3.5

Floodlight Color: White

Type of Floodlight: Solid / Strobe

Switch Function: 2 Switches. Flashlight – H/M/L/Strobe, Floodlight – H/M/Survival

Length: 3.2 in (81 mm)

Width: 1.4 in (36 mm)

Depth: 3.2 (81 mm)

Weight: 7.2 oz (204g)

Head Diameter: 1.1 in (28 mm)

Light Source: LED

Case Material: Aircraft-grade 6061-T6 Aluminum w/Type III Hard Anodized Finish

Quantity of Batteries: 2

Power Source: CR-123 Lithium Primary Batteries

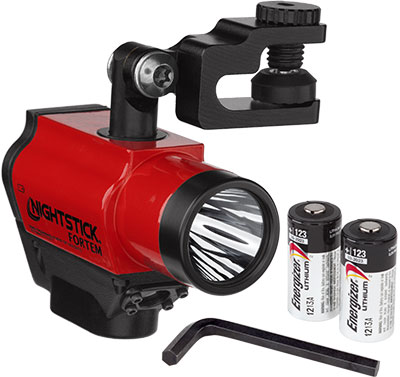

Package Contents: Light with 360-degree mount, 2 – CR-123 Lithium batteries, Allen wrench

US Patent: 9,713,217

Warranty: Limited Lifetime
