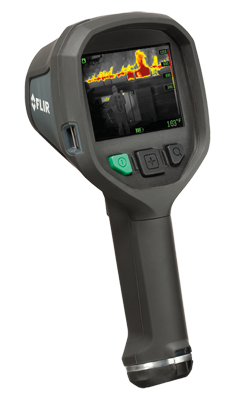

K45, K55 & K65

Thermal imaging cameras for fire fighting applications

Add to Quote
Categories: ,

Description

In the heat of the battle, a thermal imaging camera is indispensable – a vital tool that helps you quickly visualize your plan of attack, locate hot spots, and save lives. Ideally, every engine and truck company should have at least one high-performance TIC on hand. Since FLIR K-Series arrived on the scene, now that’s more feasible.

Affordable K-Series TICs offer new, easier ways to see more clearly in the darkest, smokiest environments by showing big, bright FLIR images to help you maneuver more strategically, stay better oriented, and find victims faster. With greater situational awareness, you’ll improve safety and the likelihood of successful outcomes.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • Clear and Crisp Thermal Images
  • FSX™ Flexible Scene Enhancement
  • NFPA® – Compliant K65
  • In-Camera Video Storage (K55 & K65 only)
  • Extremely Affordable: A Thermal Imaging Camera in Every Fire Truck
  • Rugged & Reliable
  • Easy-to-Use, Even with Gloves On
  • Produce Simple Reports
Downloads
K45K55K65
Certifications
Certified according to NFPA1801:2013 specificationNoYes
Imaging and optical data
IR resolution240 x 180 pixels320 × 240 pixels
Thermal sensitivity< 40 mK @ +30°C (+86°F)< 30 mK @ +30°C (+86°F)< 30 mK @ +30°C (+86°F)
Contrast optimizationDigital image enhancement using FSX
Field of view (FOV) / focus51° × 38° / fixed focus
Image frequency60 Hz
Zoom2x, digital zoom
Focal Plane Array (FPA) / Spectral rangeUncooled microbolometer / 7.5–13 µm
Start-up time< 17 sec. (IR-image, no GUI)
Start-up time from sleep mode< 4 sec.
Image storageUp to 200 JPEG images on internal Flash Memory (co-dependent on the number of saved video clips)
Video storageNo200 files in total, with a maximum duration of 5 minutes per video clip
In-camera video recording formatNoNon radiometric MPEG-4 to internal Flash Memory
Image presentation
Display4” LCD, 320 × 240 pixels, backlit
Image modes• IR image:
TI Basic NFPA fire-fighting mode / Black-and-white fire-fighting mode / Fire mode
Search-and-rescue mode / Heat detection mode
• Thumbnail gallery
Auto-rangeYes, mode dependent
Measurement
Object temperature range–20 °C to +150 °C / -4 °F to +302 °F, 0 °C to +650 °C / 32 °F to +1,202 °F
Accuracy±4°C or ±4% of reading for ambient temperature, 10°C to 35°C / 50 °F to 95 °F
Measurement analysis
Spotmeter1
IsothermYes, According to NFPA and mode dependent
Automatic heat detectionHeat detection mode (the hottest 20% of the scene is colorized)
Set-up
Color palettesMultiple palettes, mode dependent
Regional adjustmentsUnits, date and time formats
Data communication interfaces
InterfacesUSB-mini
USBUSB Mini-B: Data transfer to and from PC / uncompressed colorized video
Power system
BatteryLi Ion, 4 hours operating time
Charging system2-bay charger, truck charger available
Charging time2 hours to 85% (3 hours and 25 minutes) capacity, charging status indicated by LED’s
Charging temperature0 °C to +45 °C / 32 °F to 113 °F
Environmental data
Operating temperature range–20°C to +85°C (–4°F to +185°F) / +150°C (+302°F): 15 min / +260°C (+500°F): 5 min
Storage temperature range–40 °C to +85 °C (-40 °F to +185 °F)
Humidity (operating and storage)IEC 60068-2-30/24 h 95% relative humidity +25ºC to + 40ºC (+77ºF to +104ºF) / 2 cycles
Relative humidity95% relative humidity +25ºC to + 40ºC (+77ºF to +104ºF) non-condensing
DirectivesDesigned to meet
NFPA 1801:2013 specification:
• Vibration
• Impact acceleration resistance
• Corrosion
• Viewing surface abrasion
• Heat resistance
• Heat and flame
• Product label durability		Certified according to
NFPA 1801:2013 specification:
• Vibration
• Impact acceleration resistance
• Corrosion
• Viewing surface abrasion
• Heat resistance
• Heat and flame
• Product label durability
EMC• EN 61000-6-2:2005 (Immunity)
• EN 61000-6-3:2011 (Emission)
• FCC 47 CFR Part 15B (Emission)
Magnetic fieldsEN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
EncapsulationIP 67 (IEC 60529)
Shock25 g (IEC 60068-2-27)
Vibration2 g (IEC 60068-2-6)
Drop2.0 m / 6.6 ft., on concrete floor (IEC 60068-2-31)
Safety (power supply)CE/EN/UL/CSA/PSE 60950-1
Physical data
Camera weight, incl. battery<1,1 kg / 2.4lb
Camera size (L × W × H)<120 × 125 × 280 mm / <4.7 x 4.9 x 11”
Tripod mountingUNC ¼”-20
Packaging
Packaging, contentsK45/K55/K65 box contents: Infrared camera, Battery (2 ea.), Battery charger, Hard transport case, Power supply, Printed documentation, USB cable,
K45/K55 (not K65) also includes: Lanyard strap, Neck strap, Retractable lanyard
K65 also includes: Torx screwdriver (T20)
Optional accessoriesExtra battery, battery charger, retractable lanyard, strap lanyard, neck strap, USB-cable,
tripod adapter, in-truck charger
