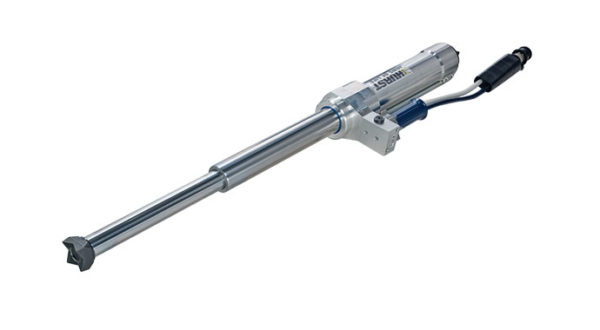

R 422

The complete ram for the complete rescue.

Add to Quote
Categories: ,

Description

This solid steel, two-stage ram can lift up 30 U.S. tons in the first stage and 14 U.S. tons in the second stage. And it has a dual pilot check valve that will sustain necessary load requirements even if the hydraulic flow is interrupted. Powerful stuff that can make quick work of dashboards and steering wheel columns.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • Dead man control valve reverts to neutral position if worker’s hand slips from control
  • Dual pilot check valve sustains load requirements if hydraulic flow is interrupted
  • Solid steel piston rod provides high tensile strength and eliminates side-load distortion
  • Heat-treated steel ram feet feature a highly durable gripping surface to minimize slippage
  • Compatible with both HURST High Pressure ram support attachments
Downloads
  • Length Retracted 21.7 in / 550 mm
  • Length Extended 49.4 in / 1,255 mm
  • Width 4.41 in / 112 mm
  • Depth 8.7 in / 221 mm
  • Weight 41.4 lbs / 18.8 kg
  • Stroke – Piston 1 14.4 in / 365 mm
  • Stroke – Piston 2 13.4 in / 340 mm
  • Stroke – Overall 27.8 in / 705 mm
  • Max Pushing Force – Piston 1 60,474 lbs / 269 kN
  • Max Pushing Force – Piston 2 30,124 lbs / 134 kN
  • NFPA 1936 2015 Compliant Yes
