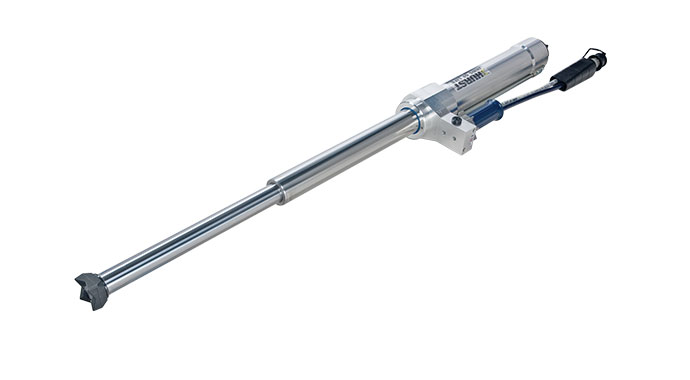

R 424

The complete ram for the complete rescue.

Add to Quote
Categories: ,

Description

Made from solid steel, the R 424 provides high tensile strength and eliminates side-load distortion. And its two-stage telescoping reaches the lifting height of two standard rams. When you’re saving lives, you don’t want standard.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • Dead man control valve reverts to neutral position if worker’s hand slips from control
  • Dual pilot check valve sustains load requirements if hydraulic flow is interrupted
  • Solid steel piston rod provides high tensile strength and eliminates side-load distortion
  • Heat-treated steel ram feet feature a highly durable gripping surface to minimize slippage
  • Compatible with both HURST High Pressure ram support attachments
Downloads
  • Length Retracted 24.6 in / 625 mm
  • Length Extended 59.1 in / 1,500 mm
  • Width 4.41 in / 112 mm
  • Depth 8.7 in / 221 mm
  • Weight 46.3 lbs / 21 kg
  • Stroke – Piston 1 17.51 in / 445 mm
  • Stroke – Piston 2 16.9 in / 430 mm
  • Stroke – Overall 34.5 in / 875 mm
  • Max Pushing Force – Piston 1 60,474 lbs / 269 kN
  • Max Pushing Force – Piston 2 30,124 lbs / 134 kN
  • NFPA 1936 2015 Compliant Yes
