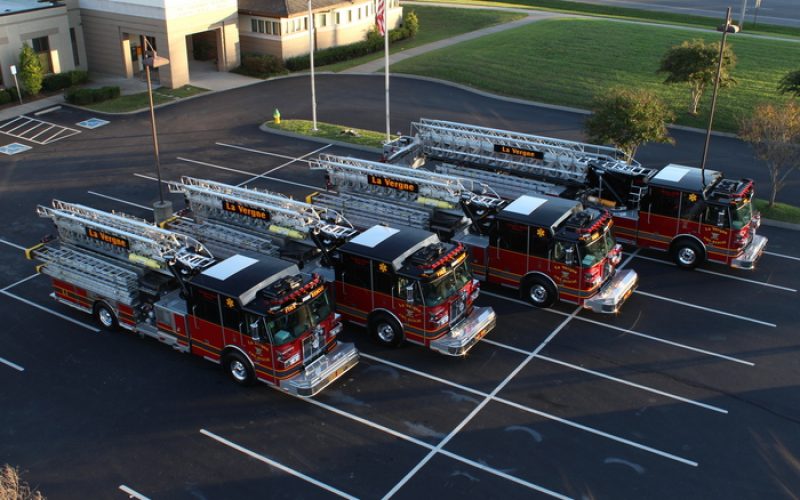

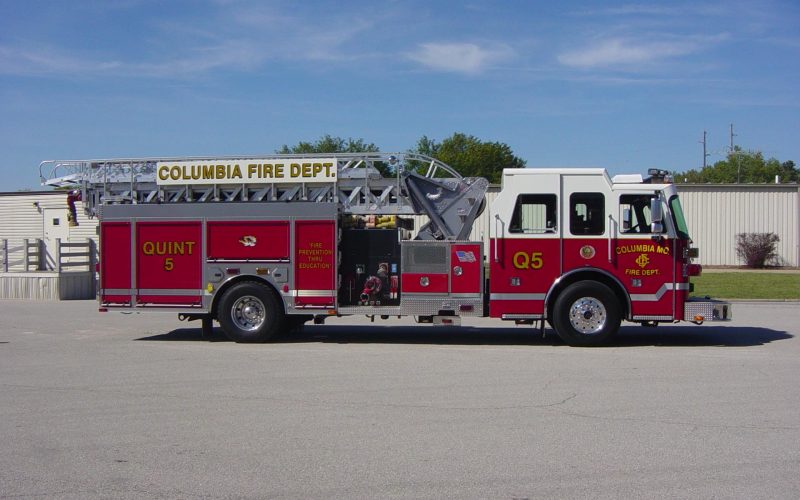

SA 75 Aerial Ladder

The Sutphen SA75 aerial ladder delivers the dependability, ease-of use, and performance you need in tough circumstances.

Description

Current technology and extensive Sutphen experience make this fire apparatus irreplaceable for your demanding conditions.

While flowing up to 2,000 gallons per minute of water, this aerial is rated at a 1000-pound tip load, and when dry, the aerial offers an astonishing 750-pound rating wet, by far the highest in the industry. Additionally, set up time is just 20 seconds using one central control, the fastest in the industry.

Other features of the new ladder include an electric radio controlled monitor and nozzle that can be operated at the tip of the third or the fourth section of the ladder. The aerial is also equipped with a full capacity bolt-on egress tip.



Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features

Sutphen Signature Mid-Mount Design: Not only did we invent it, but we’ve perfected it.  The Mid-Mount design has been the Sutphen signature design for over 50 years, and while others have tried to copy it, no one can match the quality and dependability of a Sutphen.

Lower Center of Gravity: The Sutphen Mid-Mount design and lower overall weight naturally contribute to a lower center of gravity.  An apparatus with a lower center of gravity is a safer, more stable, and better handling piece of equipment.

Ease of Maintenance and Serviceability: Not having the platform rest over the cab means not having to raise the aerial in order to tilt the cab for access to the engine or other vital chassis components.  Daily checks and service can be done inside the station or service center.

Lighter Overall Weight:  Sutphen Aerial Apparatus typically have an in service weight 10-20 Tons less than our competition.  Don’t be mistaken though, lighter weight doesn’t mean lighter duty.  What lighter weight does mean is better acceleration, better breaking with shorter stopping distance, and less wear and tear on your brakes and brake components which reduces maintenance costs.

The Strongest Aerial Device in the Industry:  Four sides are always better than three, and the Four-Sided Box Boom design of the Sutphen Aerial Device makes it the strongest in the industry.  Constructed using #6061-T6 aluminum alloy and fastened with aircraft grade HuckBolt technology, the aerial has a safety factor of 3:1, unmatched in the industry.  The HuckBolt system eliminates the need for welds.  Welding weakens the material, making it susceptible to cracking.

Lower Aerial Maintenance:  The aluminum aerial device never needs painted, and won’t rust.  Aerial slide blocks are constructed from Ultra High Molecular Weight Plastic that requires little to no maintenance.

Fast and Easy Set Up:  From the time you arrive on scene, the Sutphen Mid-Mount Aerial can be set up and in the air in 30 seconds or less.  The fastest and most efficient set up time in the industry.  All necessary control stations, eg: Cab, Jacks, Pump, and Turntable, are located within 6’ of each other.

The Strongest Aerial Device in the Industry:  Four sides are always better than three, and the Four-Sided Box Boom design of the Sutphen Aerial Device makes it the strongest in the industry.  Constructed using #6061-T6 aluminum alloy and fastened with aircraft grade HuckBolt technology, the aerial has a safety factor of 3:1, unmatched in the industry.  The HuckBolt system eliminates the need for welds.  Welding weakens the material, making it susceptible to cracking.

Thinking Inside the Box:  We’ve built the box, now let’s put something in it. Doesn’t it make sense to keep all of the important equipment protected inside? The waterway, electric cables, and breathing air hoses are all housed inside the Box Boom.  There they stay protected with less chance of being damaged, which reduces the chance of costly repairs, and apparatus down time.  This also means that the Sutphen Aerial device can be placed right up against a roof cornice or building with no risk of damaging the waterway.

Heavy Duty Cab Interior:  Cab interiors are well appointed and very durable.  Stainless steel door panels are standard, and heavy duty Durawear material covers the headliner and back wall.  Bostrom Secure-All ABTS SCBA seats Durawear covered seats are standard.

Multiple Seating Configurations: Cab and interior configurations available to accommodate anywhere from 6 up to 10 personnel all while still maintaining a “full tilt” cab.

Superior Driving Visibility:  With no ladder hanging over the top of the cab, your visibility is much greater.  With the Mid-Mount design, there is nothing to block your view of busy intersections, street corner signs, or traffic lights.

Hose Bed Capacity:  The easily accessible hose bed is also located at the rear of the apparatus and holds 1000’ of 5” supply hose.

Up to 500 Gallons of Water: Water tank sizes up to 500 gallons depending on body selection and configuration.  Foam tanks are also an option.

Heavy Duty Body:  The Sutphen body is constructed from corrosion resistant #304 Stainless Steel.  Body compartments are bolted together for strength and ease of repair.  Body compartments are tall and deep providing ample storage space for rescue tools and other bulky equipment, as well as tool mounting boards, shelves, trays, etc.

Additional Features

  • All Sutphen Aerial Apparatus are rated for 50 mph wind load.
  • Single source design, engineering, and manufacturing.
  • The Sutphen Aerial will operate at full capacity anywhere within the operating envelope, regardless of extension or elevation, thus eliminating the need for a load chart.
  • The hydraulic system operates with lower hydraulic pressure and lower heat; this is due to the lower weight of the device.
  • All Sutphen Aerial Apparatus include a Twenty (20) year structural warranty.
Downloads

CHASSIS:

  • Monarch 56”, 62”, 73” cab options with flat, or 10” half, or and 15” half raised roof options
  • Front Axle and Suspension up to 25,500 lbs. 23,000 lbs.
  • Rear Axle and Suspension 31,000 lbs.
  • 12” bumper standard, optional 6”, 18”, 24”, or 30” extension options.  Optional steel or steel channel, painted bumper
  • Engine Options:  Cummins ISL 9 400 or 450HP, or Cummins ISX 0 450 or 500HP 12L 425, 450, or 500HP, or Cummins ISX 15L 600HP.
  • Transmission:  Allison Gen 5 EVS 3000 or EVS 4000 (dependent on engine)
  • Point-to-Point or Multiplex wiring systems
  • Diamond Plate Cab Roof (standard 36” x 59”)
  • Standard 215” Wheelbase (with 56” cab)

PUMP:

  • Hale or Waterous, 1500 to 2000 gpm
  • Standard Pump Equipment: (2) 6” main suction, (2) 2.5” discharges left, (1) 2.5” discharge right, (2) 5” crosslay, (1) 3” tank to pump, and (1) 1.5” tank fill
  • Black vinyl, brushed, or mirrored finish stainless pump panel
  • Up to 500 gallon poly water tanks

BODY:

  • #304 Stainless Steel bolted body, Huck bolted to the chassis frame
  • Four different body configuration options, with transverse rear compartment with two of the option
  • Up to 210 ft. of usable compartment space
  • Roll up doors or hinged doors offered in painted or non-painted satin finish
  • Alco-Lite or Duo-Safety ladders, pumper, quint or aerial compliant

AERIAL LADDER:

  • 4-section ladder
  • 1500 GPM monitor/nozzle

ADDITIONAL OPTIONS:

  • EMS/storage cabinet options in the cab
  • Hose storage, front suction, front discharge options in the bumper
  • Multiple pump inlet, discharge, and crosslay options
  • Foam system options
  • Generator options up to 30 kw
  • Numerous electrical and scene lighting options
