Spiral Duct

Categories: ,

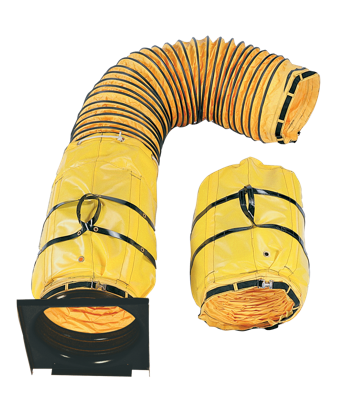

This is the highest quality duct made. These durable and long lasting ducts feature a single-ply neoprene impregnated polyester fabric with a continuous spring steel wire helix for support. Hot melt wear strips cover the helix for added durability.

This duct is ideal for moving large quantities of air into hard to reach places and will fit on any Super Vac smoke ejector. This duct can also be used as an extension to create a longer duct when attached to another Super Vac spiral duct.

All ducts come with a built-in storage bag for easy transportation.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

  • Material – Single ply neoprene impregnated polyester
  • Structure – Steel Wire Helix
  • Wearstrips – heavy duty hot melt wear strips
  • Length – 20 ft – custom sizes available
  • Heat Rating – -40 – 250°F, flame resistant to NFPA 701 standards
  • Note: Not for use in explosive environments or where static discharge could compromise safety
Model Diameter Length
12x20AD1 12″ – 305mm 20 ft – 6.1m
16x20AD1 16″ – 406mm 20 ft – 6.1m
20x20AD1 20″ – 508mm 20 ft – 6.1m
24x20AD1 24″ – 610mm 20 ft – 6.1m
