TL-9

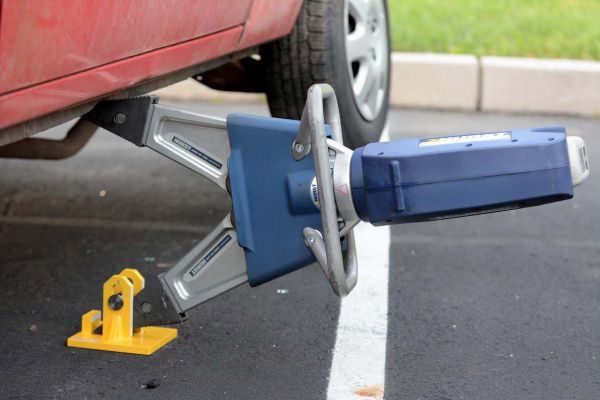

The TL-9 Stabilizer allows for a rapid lift with maximum stabilization.

Description

The TL-9 is made from half inch solid steel, with a 6 x 6 base plate, and 4 1/2 inch gusseted towers spaced approximately 2 inches apart. The solid base plate increases the contact surface area with the ground while the towers provide lateral support for the tool. In addition, there is a solid steel traveling limit pin between the towers that prevents the spreaders from opening beyond 70%. At 70%, lift heights have ranged between 19-30 inches depending on the H.R.T. unit.  When the traveling pin reaches the tops of the towers it locks the lower tip of the spreader into a groove at the front of the plate which works to increase overall stability.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.
Features
  • Constructed with 1/2 inch AS-36 Steel
  • Compression tested to 50 tons
  • Works will all hydraulic spreader units
  • Custom made to fit your spreader within an 1/8 of an inch
  • Rapid set-up and operational time, user friendly, extremely efficient, safe and simple to operate
  • Solid construction features provide for unparalleled lateral stability when compared to any other set up of this nature
