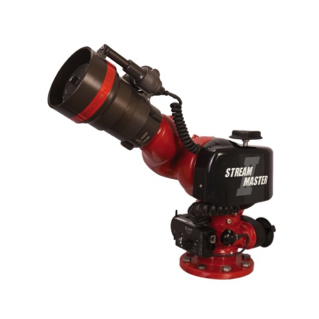

3480 StreamMaster II Electric Fire Monitor System 2000 GPM (7600 LPM)

Universal Water Cannon

Categories: ,

Description

The Style 3480 StreamMaster™ II mid-range fire monitors represent the next level of innovation in monitor design technology from Akron Brass. With its multiple patent-pending designs, the Style 3480 fire fighting monitors provide efficient flows up to 2000 GPM (7600 LPM). These firefighting monitors have a unique waterway design that provides balanced forces on the outlet and reduced friction for the stream resulting in exceptional fire suppression performance over a wide range of flows in a compact configuration. Standard absolute position sensors provide advanced features including programmable obstacle avoidance, oscillation, and stow/deploy positions. The onboard, fully sealed IP 67 CAN control system features a “plug-and-play” installation with built-in wireless capability and a USB port for quick software updates in the field. The 355-degree rotation and 165-degree elevation range can be configured for deck or aerial applications, making this high-performance compact monitor a universal water cannon.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.
Features
  • Compact industry leading operating envelope (6″, 152 mm)
  • Lightweight Pyrolite construction
  • Simple “plug and play” installation
  • Integrated wireless compatibility, utilizing the optional 3600 hand held remote control
  • Waterproof (IP 67 rated) control system with locking connectors
  • User Programmable Obstacle Avoidance
  • User Programmable stow and deploy positions
  • Superior range of motion
  • Rotation range 355°
  • Elevation range +120°, – 45°
  • 12V or 24V operation
  • Compatible with 3406 Electric Riser
  • Now available with permanently attached handwheel overrides as an option (must specify)
