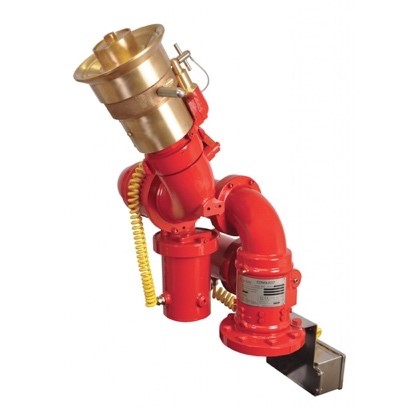

3678 Conquest Remote Control Monitor System

The Conquest Electric Remote Controlled Monitor System is ideal for use in industrial fire suppression, vapor mitigation, and other fixed site applications.

Add to Quote
Categories: ,

Description

The Style 3678 Conquest Monitor is a fixed site, electrically operated, vapor mitigation and fire fighting device, designed to flow water up to 2000gpm.  Unlike many competitors that adapt existing products intended for truck applications, the AC Conquest is specifically designed for industrial applications and the harsh environments they are located in. ATEX approved for all gas groups II 3 G Ex nR IIC T6 Gc. Also, FM approved for Class 1, Div. 2, Group C & D locations.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • Brass construction for use in severe environments
  • Efficient flow up to 2000 gpm (7600 lpm) through a 4” waterway
  • FM approved for NEC Class 1, Div 2, Groups C & D hazardous locations
  • Electric motors with current limiting and dynamic braking: AC motors with brass housings for elevation and rotation.  Motors have manual override for operation during power failures.
  • Fixed or automatic baffle nozzles
  • Manual overrides
  • Elevation: 175°, +90° above horizontal to -85°below horizontal.
  • Electrical: 120VAC, Supplied from the Motor Control Unit.
  • Reaction 1430Lbf. (6360 N)
  • Force Moment at Base Inlet: 1907Lb.-ft. (2585 N-m)
