FORGE Helmet Light

The most versatile choice for helmet-mounted hands-free lighting.

Categories: ,

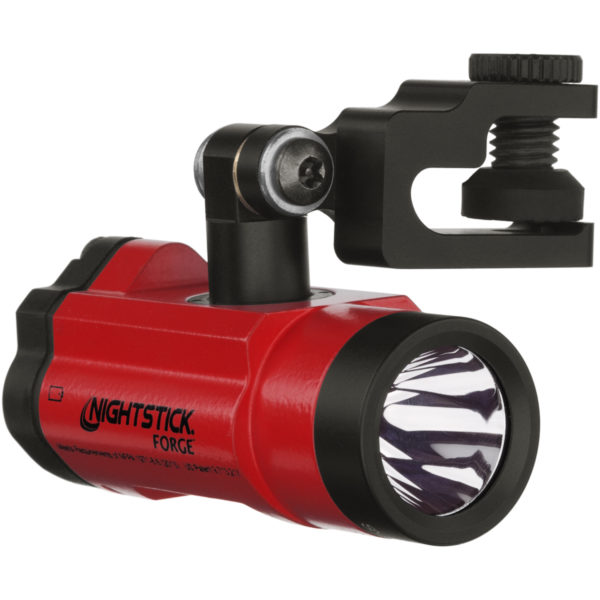

The FORGE Helmet Light is the most versatile choice for helmet-mounted hands-free lighting. The FORGE outshines the competition with its powerful 360-lumen tightly-focused flashlight and a beam distance rating of 218 meters (715 feet). The user can also choose a lower 180-lumen setting for increased runtime. The FORGE also features a 25-lumen for 30 hours Survival Mode.

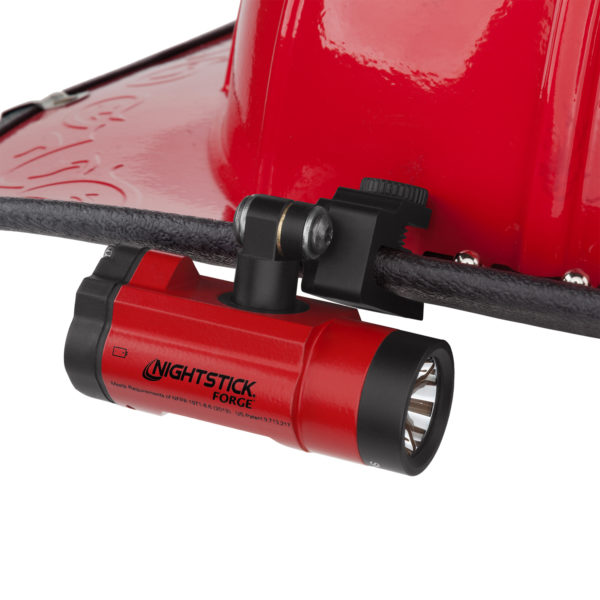

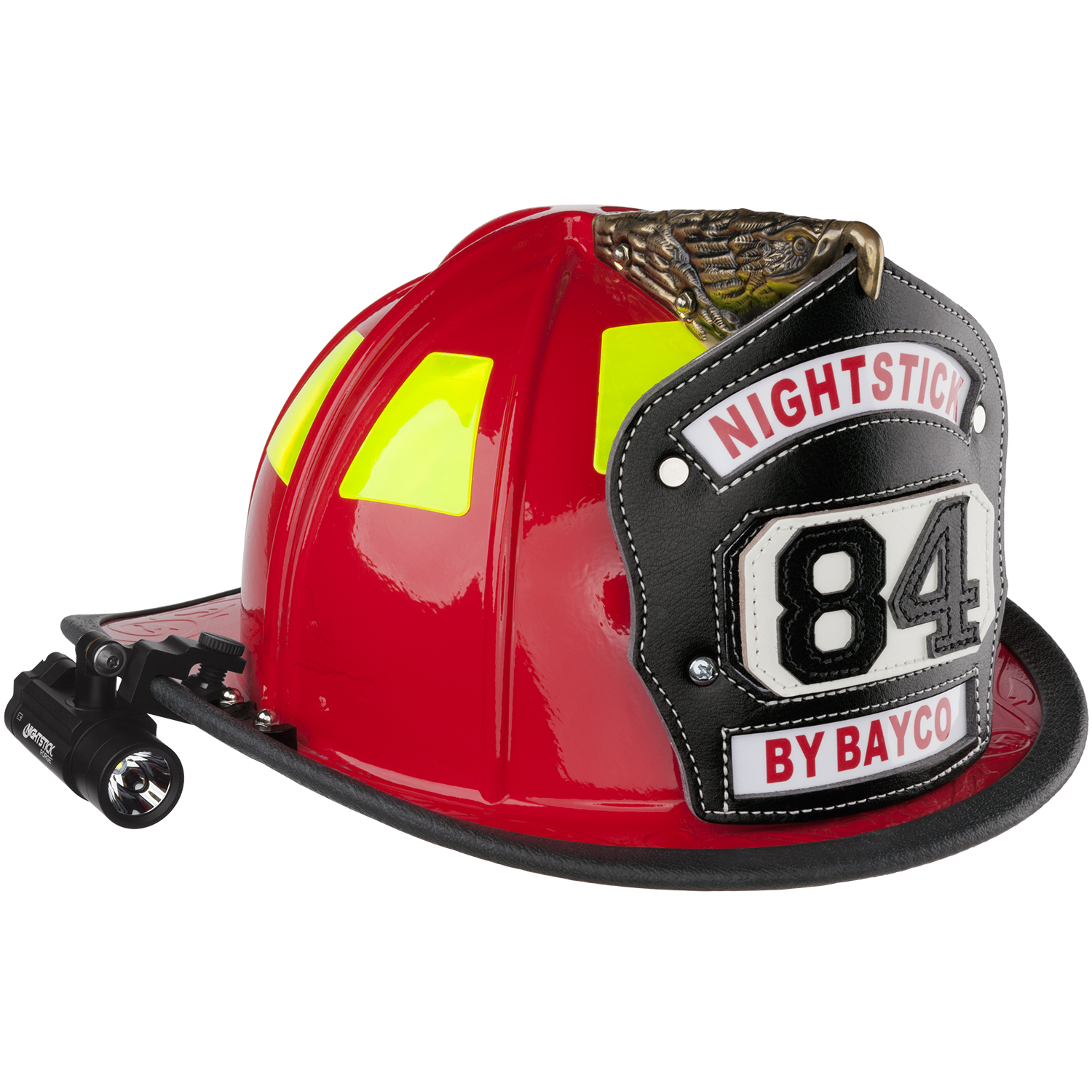

The FORGE will fit on any Fire Helmet (or side-brim hard hat) regardless of whether it has an up-turned or down-turned brim thanks to the multi-angle mount that allows the user to fine-tune the exact light position and angle for optimal aim. This feature makes it possible to not only avoid goggles, face shields, and other helmet-worn gear but also place the light exactly where it’s needed. The FORGE is IP-X7 rated waterproof and meets the requirement for NFPA-1971-8.6 (2013). Power comes from 2 included CR123 batteries.

Available P/Ns: NSP-4640B (black) and XPP-5465R (red)

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

  • User-selectable 360-lumen High, 180-lumen Low and 25-lumen Survival modes
  • A single push-button switch operates easily with heavy gloves
  • Switch features built-in rear-facing green safety LED

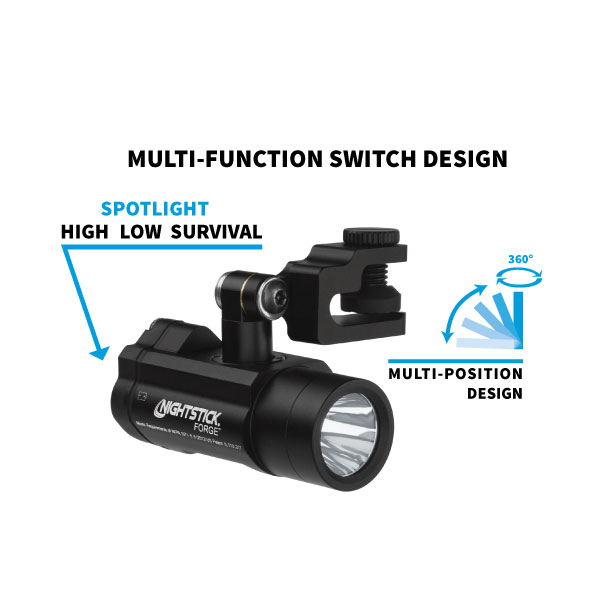

  • A 360-degree multi-angle mount allows the user to select exact angle and position for optimum light alignment and clearance of face shields, goggles or other equipment
  • Helmet clamp with rubber foot provides secure, mar-free attachment
  • Works with virtually all fire helmets and hard hats
  • Impact & chemical resistant
  • IP-X7 Waterproof
  • cETLus certified Class I Div 2 Intrinsically Safe
  • Meets the requirements for NFPA-1971-8.6 (2013)
  • Serialized for personal identification
  • 2 CR123 batteries (included)
  • Limited Lifetime Warranty

Multi-Function: Yes

Flashlight Lumens: 360 / 180 / 25

Beam Distance: 218 m / 161 m / 43 m

Candela: 11,928 / 6,544 / 472

Drop Rating: 2 m

Dust/Water Rating: IP-X7 Waterproof

Flashlight Runtime: 4.5 / 6.5 / 30

Switch Function: Single Switch – High, Low and Survival Brightness

Length: 3.2 in (81mm)

Width: 1.4 in (36mm)

Depth: 3.2 in (81mm)

Weight: 7.2 oz (204g)

Diameter: 1.1 in (29 mm)

Light Source: LED

Case Material: 6061-T6 Aluminum

Body Color: Red

Quantity of Batteries: 2

Power Source: CR123 Lithium Primary Batteries

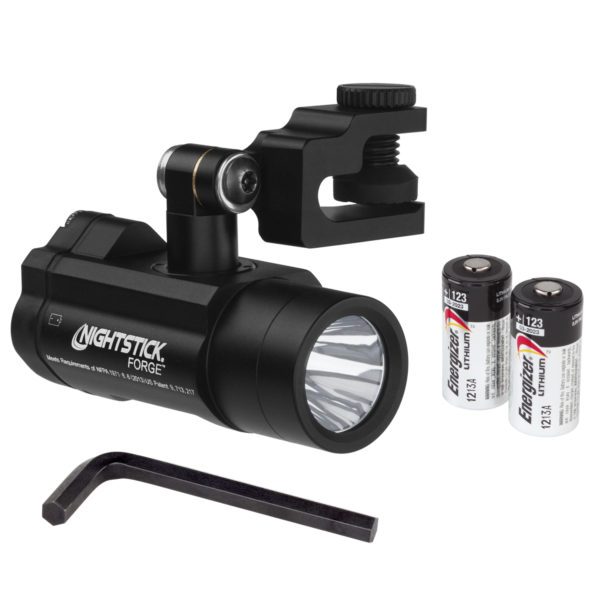

Package Contents: Light, 2 CR123 Lithium batteries, Allen wrench

US Patent: 9,713,217

Warranty: Limited Lifetime
