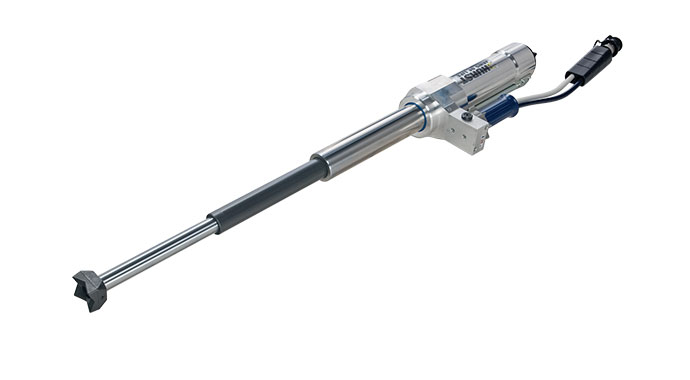

R 430

The world’s first triple-stage ram.

Add to Quote
Categories: ,

Description

Because of its three stages, it delivers a long working range that considerably reduces extrication time. And that saves lives.

It has a push capacity of 30 U.S. tons in the first stage and 14 U.S. tons in the second. Plus, heat-treated claws on the top and base provide grip on flat and angled surfaces. This tool lives up to the “ram” name.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • Dead man control valve reverts to neutral position if worker’s hand slips from control
  • Dual pilot check valve sustains load requirements if hydraulic flow is interrupted
  • Solid steel piston rod provides high tensile strength and eliminates side-load distortion
  • Heat-treated steel ram feet feature a highly durable gripping surface to minimize slippage
  • Compatible with both HURST High Pressure ram support attachments
Downloads
  • Length Retracted 18.7 in / 475 mm
  • Length Extended 51 in / 1295 mm
  • Width 4.41 in / 112 mm
  • Depth 8.7 in / 221 mm
  • Weight 39 lbs / 17.7 kg
  • Stroke – Piston 1 11.61 in / 295 mm
  • Stroke – Piston 2 11 in / 280 mm
  • Stroke – Piston 3 9.65 in / 245 mm
  • Stroke – Overall 32.3 in / 820 mm
  • Max Pushing Force – Piston 1 60,474 lbs / 269 kN
  • Max Pushing Force – Piston 2 30,124 lbs / 134 kN
  • Max Pushing Force – Piston 3 8,768 lbs / 39 kN
  • NFPA 1936 2015 Compliant Yes
