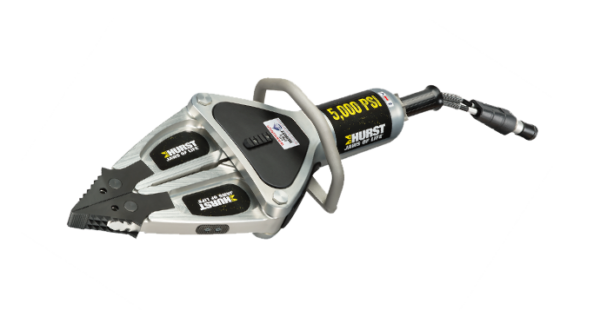

SL-532 Defender

The SL-532 Spreader doesn’t have a problem with getting up in steel’s face.

Categories: ,


This spreader features a generous 32-inch spreading distance and 67,400 pounds of spreading force. Nothing will get in your way.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

  • Dead man control valve reverts to neutral position if worker’s hand slips from control
  • Dual pilot check valve sustains load requirements if hydraulic flow is interrupted
  • Ergonomically designed star-grip permits tool actuation from almost any gripping position
Length 35.4 in/898 mm
Width 12.2 in/309 mm
Height 7.95 in/202 mm
Weight 43.4 lbs/19.7 kg
Spreading Distance 32 in/813 mm
Max Spreading Force 67,400 lbs/300 kN
Max Pulling Force 6,740 lbs/30 kN
NFPA HSF 9,660 lbs/43 kN
NFPA LSF 6,740 lbs/30 kN
NFPA HPF 5,620 lbs/25 kN
NFPA LPF 3,370 lbs/15 kN
NFPA 1936 2015 Compliant Yes
